Stainless Steel Cable Mesh

Stainless Steel Cable Mesh

Stainless steel cable mesh is a flexible metal mesh with a diamond mesh which is formed by a special process and a plurality of stainless steel wire ropes which are linked by interlacing and knotting. Stainless steel cable mesh also known as stainless steel wire rope mesh, is a very creative wire mesh is a creative product with excellent stretch elasticity and flexibility.
Its excellent performance is super strong, lightweight, soft and elastic, corrosion-resistant and non-rust.
These characteristics make it shine in the application of animal meshes. Our customers usually call it zoo mesh. (other names:zoo net, flexible metal netting, stainless steel wire rope mesh, stainless steel woven rope mesh, cable ferrule mesh, cable woven mesh, wire woven mesh, zoo enclosure mesh.)
Stainless steel cable mesh can be used both indoors and outdoors. It is mainly used for building materials in animal cages,large bird aviary, ainmal enclosure mesh, railing filler, greeney system, bridge protection mesh, and stadium fence mesh and so on.
Download: Liulin Product Catalog2019Y.pdf

Classification

Stainless steel cable mesh divided into two categories according to different color, Natural color stainless steel cable mesh and Black stainless steel cable mesh

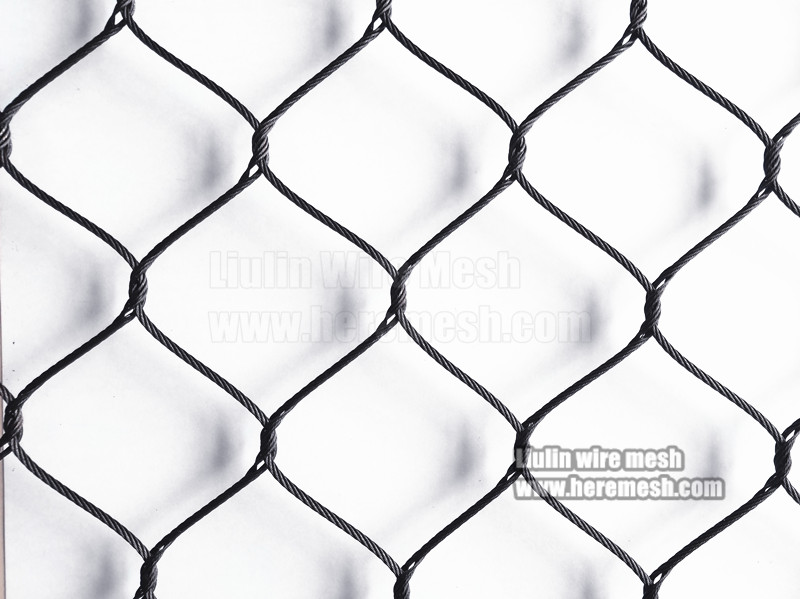

The stainless steel woven rope mesh is twisted and interwoven by the stainless steel wire rope to form a knot and linked together. This minimalist style of craftsmanship is the most dazzling product in stainless steel wire rope products. While providing the same intensity, the visual obstacles are greatly reduced, and it is easier to vanish. Without troublesome light reflection, viewing at a certain distance is almost completely invisible.
The dyeing technology of stainless steel wire rope mesh has developed rapidly in recent years. Liulin is investing heavily in the development of new stainless steel products. Through the technical research of many years, our black stainless steel cable mesh products are colored by an oxidation method, forming a black oxide coating on the surface of the wire rope. The color is uniform, no discoloration, and the color is lasting. At the same time, this oxide coating makes the wire rope mesh have a longer life and stronger corrosion resistance.
The hand-woven stainless steel cable mesh is ideal for use in zoo mesh applications. The sturdy and unobtrusive protective meshes are used in animal cages to give the public a better viewing experience. (Consequently is ideally suited for strong and unobtrusive protective nets as well as for animal enclosures in zoo applications because it is easier to see through it when viewing the animals.)
Since its establishment in 1996, Liulin has focused on the production of hand-woven stainless steel cable mesh and has won the trust and praise of its customers. We believe that stainless steel woven mesh has a unique advantage that other products can't match, and has a more promising future.
Details of stainless steel wire rope woven mesh.

Material

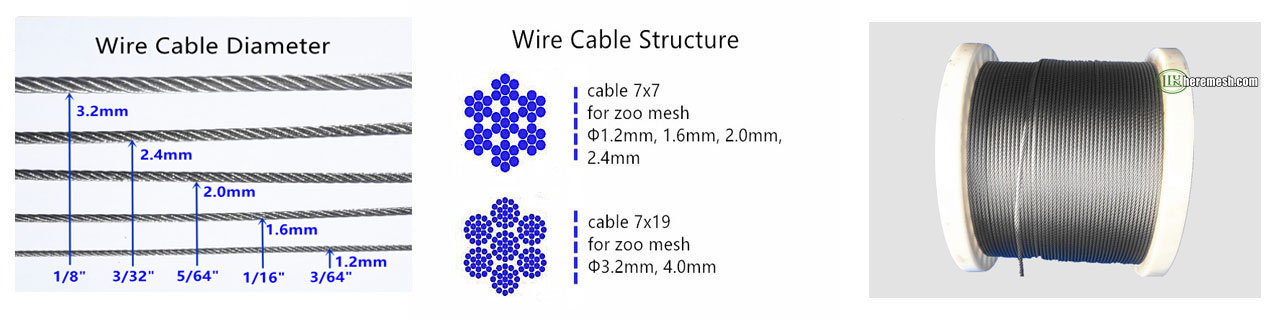

The stainless steel cable mesh is made of AISI standard 304/316 stainless steel wire rope material, and the structure is 7x7 or 7x19. This material serves as the basis for a stainless steel wire rope mesh with very good flexibility and tensile strength, corrosion resistance, and long life, depending on the stainless steel material.
AISI304/316 is austenitic stainless steel with excellent plasticity and strength, high-temperature resistance and corrosion resistance. It is widely used in food processing equipment and medical equipment industry.

Customizable


Liulin has accumulated rich experience in the production of stainless steel cable mesh(other names: flexible metal netting, stainless steel wire rope mesh, hand-woven stainless steel wire rope mesh, cable ferrule mesh, cable woven mesh, Webnet, wire woven mesh).
Beginning in 1996. We can control every detail in the production process to ensure that our products are perfectly suited to your need in mind.
Liulin offers a wealth of customizable content.
Customizable Options
>Material Type: Stainless steel 304/304L/316/316L
>Specifications:  Including wire rope diameter and mesh opening size
>Wire rope diameter:

3/64", 1/16", 5/64", 3/32", 1/8", 5/32"

1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm, 4.0mm

>Mesh opening size:

0.6"×0.6", 0.8"×0.8", 1"×1", 1.2"×1.2", 1.5"×1.5", 2"×2", 2.4"×2.4", 3"×3", 3.6"×3.6", 4"×4",  5"×5",  6"×6".

15mm×15mm, 20mm×20mm, 25mm×25mm, 30mm×30mm, 38mm×38mm, 51mm×51mm, 60mm×60mm, 76mm×76mm, 90mm×90mm, 102mm×102mm, 127mm×127mm, 152mm×152mm.

>Color: Natural color, Black color, Bronze color
>Mesh panel size:

You can provide the dimensions of the mesh panel and we will produce it according to the size you provide.
The standard size is 18m (L) x 9m (H).

The large panel size is supported, depending on different specifications the largest single panel size can be reached 300m². We recommend that you provide the required size so that you don't need to cut and avoid waste during installation.


Service

1, Free Sample: A sample of fewer than 1 feet square is provided free of charge. Requestor needs to incur the courier charges.
2, Panel size: The panel size can be modified to the size you provide, which reduces costs and makes installation easier.
3, Packaging: The rope mesh will be rolled and packed into the P.P. woven bags or pallet.
4, Lead time: The order could be arranged within 24hours, lead time is between 7-30 days depending on the quantum of order.
5, For individual users: We can provide installation tools and installation accessories, you can easily complete DIY.
6, Order: We charge a 30% deposit and you can accept and pay the final payment before shipment.
free sample of wire mesh -4
A sample of fewer than 1 feet square is provided free of charge.
Requestor needs to incur the courier charges.
customizable panel size of wire mesh -4
The panel size can be modified to the size you provide, which reduces costs and makes installation easier.
packaging of wire mesh -2
The rope mesh will be rolled and packed into the P.P. woven bags or pallets.
delivery of wire mesh -1
The order could be arranged within 24hours, lead time is between 7-30 days depending on the quantum of order.
tool kit of wire mesh -2
For individual users, we will provide installation tools and installation accessories, for easily complete DIY.
quick order of wire mesh -1
We charge a 30% deposit and a final payment before shipment, the order could be arranged within 24hours.

Shipment

Depending on the quantity of the order, natural color products are usually shipped for 7-15 days, and dyed products need to be increased by about 7 days.
There are 3 modes of transportation available for delivery:
1. By express. Our partner company has FedEx, TNT Express, DHL Express. Shipping time is generally 3-7 days.
2. By air. Our nearest airport is Beijing Airport, the transportation time is generally 3-7 days, generally, require customers to go to the airport to clear customs.
3. By sea. Our nearest port is Tianjin Port, the transportation time is usually 7-30 days, requiring customers to arrive at the port for customs clearance.

Shipment Options
≦20kg Within 100kg, it is recommended to choose express delivery. TNT/ups
20kg-300kg  It is recommended to choose express.  TNT/FedEx/DHL/ups
300kg-1000kg More than 300 kg recommended express or air freight.  FedEx/DHL Air Freight
1000kg More than 1000 kg recommended air freight or sea shipping. Air Freight/Sea Shipping

Installation

The installation of the stainless steel cable mesh is much easier than you might expect and requires only a minimum of tools.
The flexible metal netting panel arrives in front of you in precise dimensions. Only need to follow the installation instructions and use a wire rope to firmly wrap the edge of the mesh onto the frame or support structure to tighten the mesh.
In the case of large structures (such as zoo enclosures), matching frames and meshes in order and according to actual conditions is the key to success. Ensure that the mesh has a uniform focus so that the correct tension to maintain the overall structure is safe, beautiful, and durable.
All in all, the precise custom mesh size makes the installation work simple and effective, avoiding the problems that need to be cropped. The bigger the project, the more you can save on your expenses.
Details of Installation
