Specifications of Stainless Steel Cable Mesh
Stainless steel wire rope mesh has a very wide range of specifications, providing a very wide range of applications.
Stainless steel wire rope mesh is widely used, with different wire rope diameters and different mesh sizes. Therefore it can be applied to stainless steel aviaries, stainless steel fences, stainless steel animal cages, stainless steel monkey enclosures, stainless steel lion fencing, stainless steel parrot mesh panels, etc.

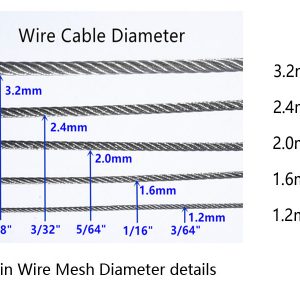

Wire cable diameter: 1/8″(3.2mm), 3/32″(2.4mm), 5/64"(2.0mm), 1/16″(1.6mm), and 3/64″(1.2mm)
Mesh aperture: 4/5″ x 4/5″(20mm x 20mm), 1″ x 1″(25.4mm x 25.4mm), 1-1/2″ x 1-1/2″(38mm x 38mm), 2″ x 2″(51mm x 51mm), 3″ x 3″(76mm x 76mm) and 4″ x 4″(102mm x 102mm), or larger.
Stainless steel wire rope mesh is widely used, with different wire rope diameters and different mesh sizes. Therefore it can be applied to stainless steel aviaries, stainless steel fences, stainless steel animal cages, stainless steel monkey enclosures, stainless steel lion fencing, stainless steel parrot mesh panels, etc.
Wire cable diameter: 1/8″(3.2mm), 3/32″(2.4mm), 5/64"(2.0mm), 1/16″(1.6mm), and 3/64″(1.2mm)
Mesh aperture: 4/5″ x 4/5″(20mm x 20mm), 1″ x 1″(25.4mm x 25.4mm), 1-1/2″ x 1-1/2″(38mm x 38mm), 2″ x 2″(51mm x 51mm), 3″ x 3″(76mm x 76mm) and 4″ x 4″(102mm x 102mm), or larger.
Specification:
1, Different specifications are applicable to different situations, and products of different specifications also correspond to different unit prices.
2, The smaller the mesh, the more knotted the unit area, which means longer processing time and higher price.
3, The right specifications can be used to achieve the functionality originally envisaged and to effectively reduce expenses.
2, The smaller the mesh, the more knotted the unit area, which means longer processing time and higher price.
3, The right specifications can be used to achieve the functionality originally envisaged and to effectively reduce expenses.
How product specifications are named:
The name of this specification is defined by the wire cable diameter and the mesh aperture.
For example:

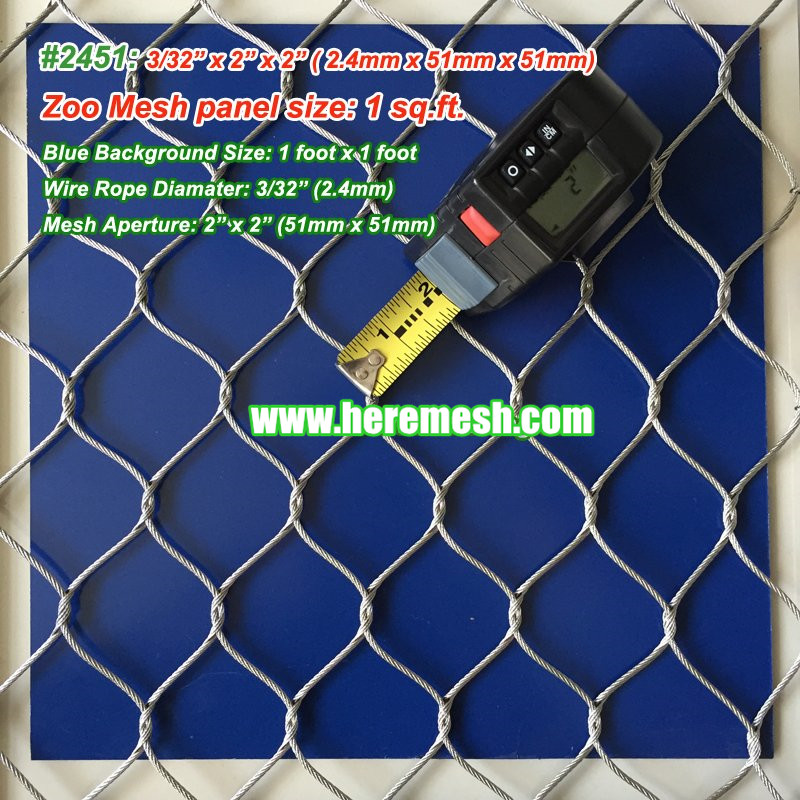

#2451
Cable diameter: 2.4mm
Mesh aperture: 51mm x 51mm

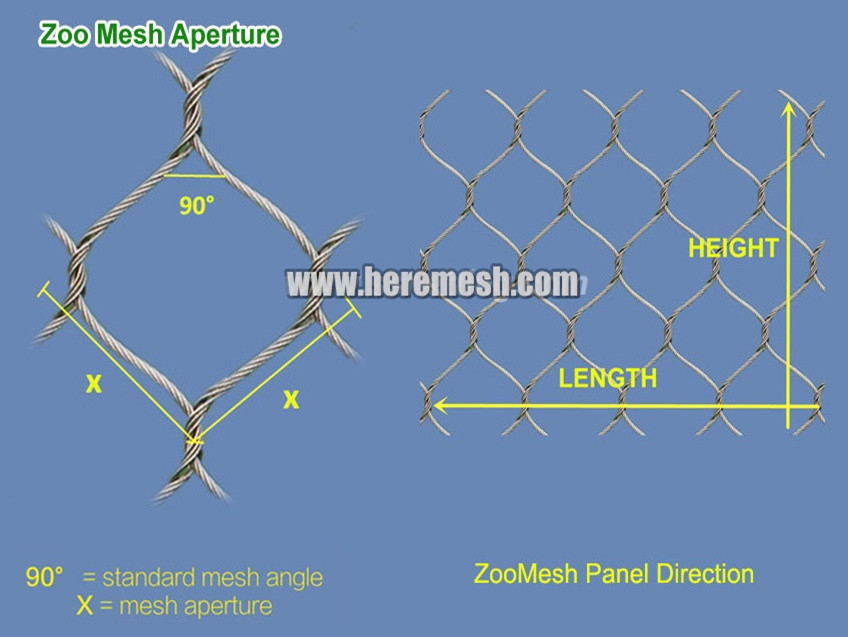

The diameter of the wire rope is 2.4 mm, and the opening of the mesh is the distance from the rope to the rope when the mesh is opened at an angle of 90 degrees, that is, X shown in the figure is 51 mm.
The name of this specification is defined by the wire cable diameter and the mesh aperture.For example:
#2451
Cable diameter: 2.4mm
Mesh aperture: 51mm x 51mm

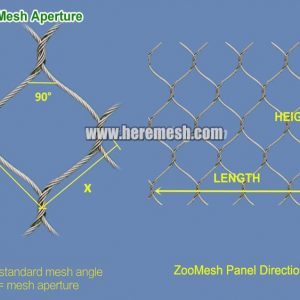

The diameter of the wire rope is 2.4 mm, and the opening of the mesh is the distance from the rope to the rope when the mesh is opened at an angle of 90 degrees, that is, X shown in the figure is 51 mm.
>Wire cable diameter: 1/8″(3.2mm), 3/32″(2.4mm), 5/64"(2.0mm), 1/16″(1.6mm), and 3/64″(1.2mm)
>Mesh aperture: 4/5″ x 4/5″(20mm x 20mm), 1″ x 1″(25.4mm x 25.4mm), 1-1/2″ x 1-1/2″(38mm x 38mm), 2″ x 2″(51mm x 51mm), 3″ x 3″(76mm x 76mm) and 4″ x 4″(102mm x 102mm), or larger.
| Code | Wire Cable Diameter | Aperture(mm) | Wire Cable Diameter(inch) | Aperture(Inch) | Unit weight(Kg/sq.m.) | Wire Cable Structure | Min.Breaking Load(KN) |
|---|---|---|---|---|---|---|---|

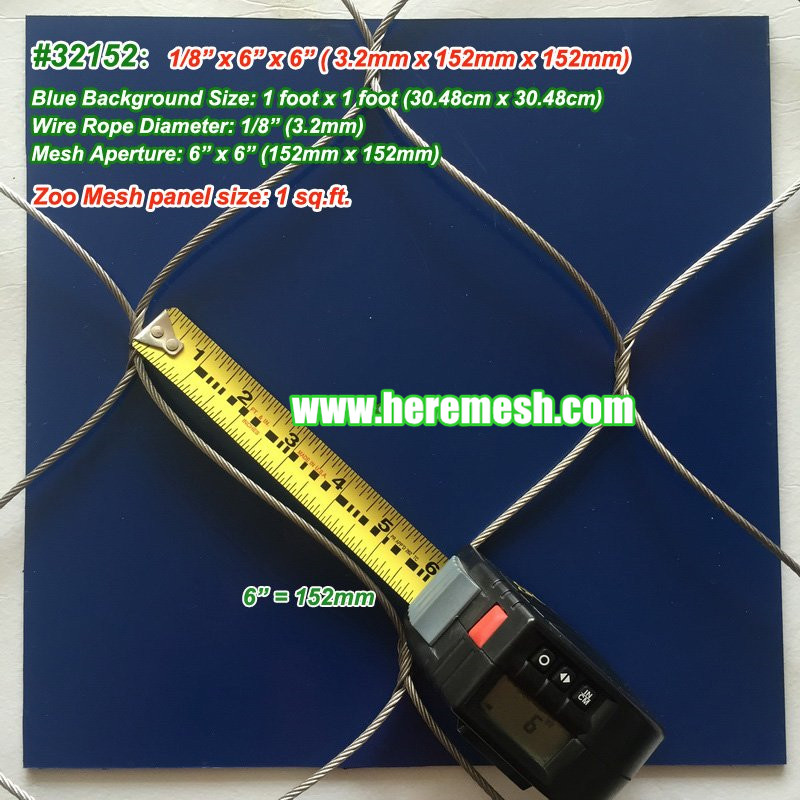

| #32152 | 3.2mm | 152 x 152 | 1/8" | 6" x 6" | 0.61 | 7×19 | 7.32 |
| #32127 | 3.2mm | 127 x 127 | 1/8" | 5" x 5" | 0.70 | 7×19 | 7.32 |
| #32120 | 3.2mm | 120 x 120 | 1/8" | 4.7" x 4.7" | 0.76 | 7×19 | 7.32 |
| #32102 | 3.2mm | 102 x 102 | 1/8" | 4" x 4" | 0.96 | 7×19 | 7.32 |
| #3290 | 3.2mm | 90 x 90 | 1/8" | 3.6" x 3.6" | 1.10 | 7×19 | 7.32 |
| #3276 | 3.2mm | 76 x 76 | 1/8" | 3" x 3" | 1.40 | 7×19 | 7.32 |
| #3260 | 3.2mm | 60 x 60 | 1/8" | 2.4" x 2.4" | 1.65 | 7×19 | 7.32 |
| #3251 | 3.2mm | 51 x 51 | 1/8" | 2" x 2" | 2.10 | 7×19 | 7.32 |
| #24152 | 2.4mm | 152 x 152 | 3/32" | 6" x 6" | 0.35 | 7×7 | 4.08 |

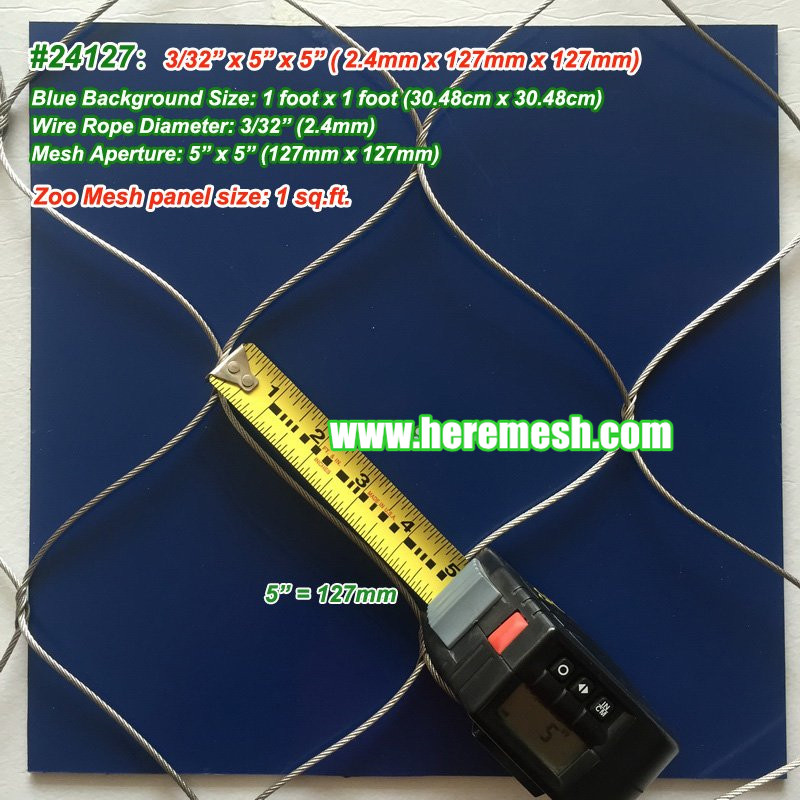

| #24127 | 2.4mm | 127 x 127 | 3/32" | 5" x 5" | 0.42 | 7×7 | 4.08 |

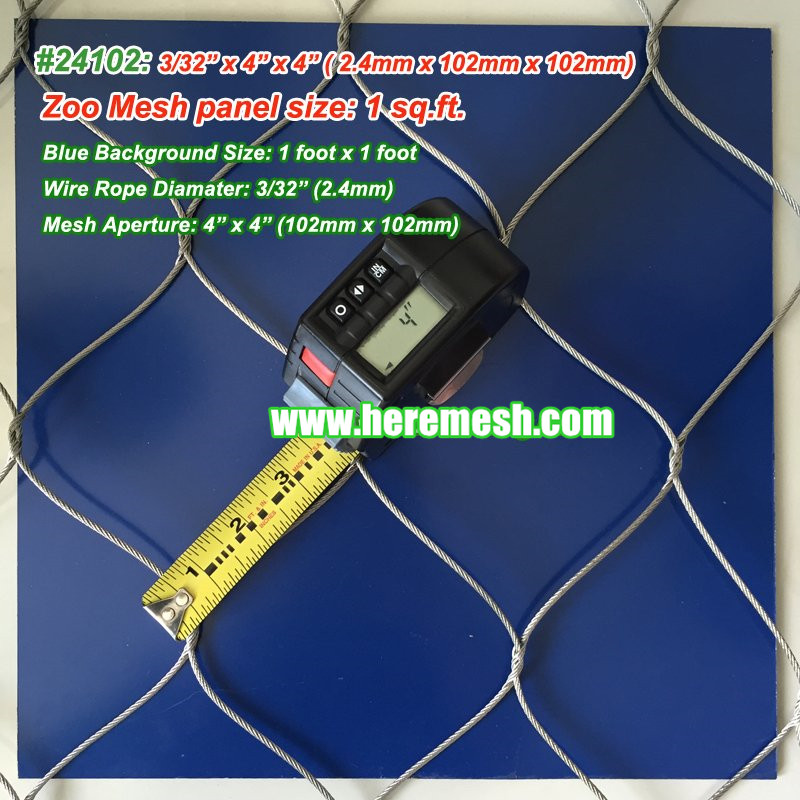

| #24102 | 2.4mm | 102 x 102 | 3/32" | 4" x 4" | 0.51 | 7×7 | 4.08 |

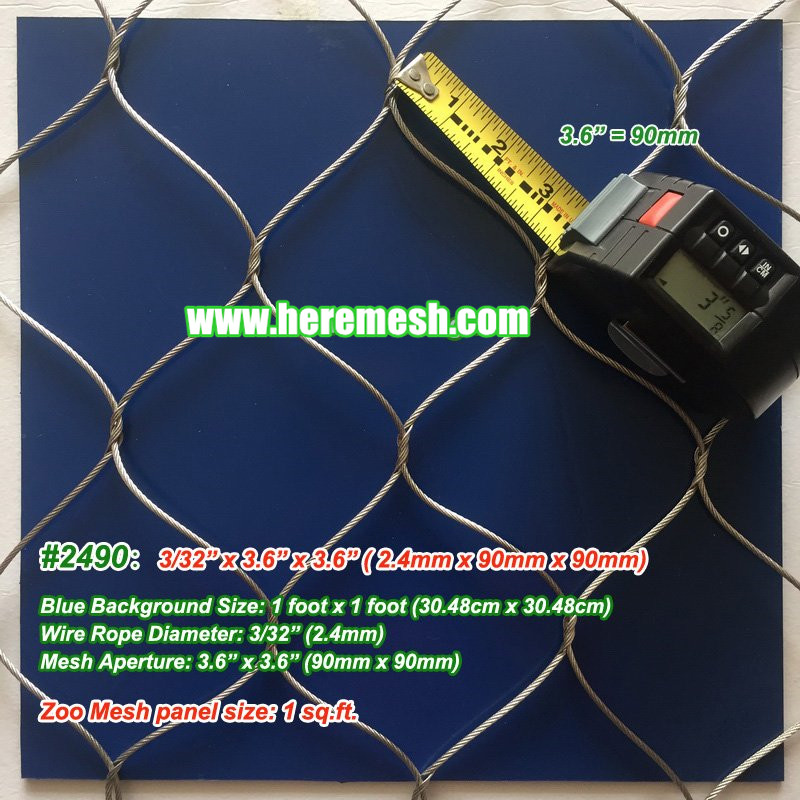

| #2490 | 2.4mm | 90 x 90 | 3/32" | 3.6" x 3.6" | 0.60 | 7×7 | 4.08 |

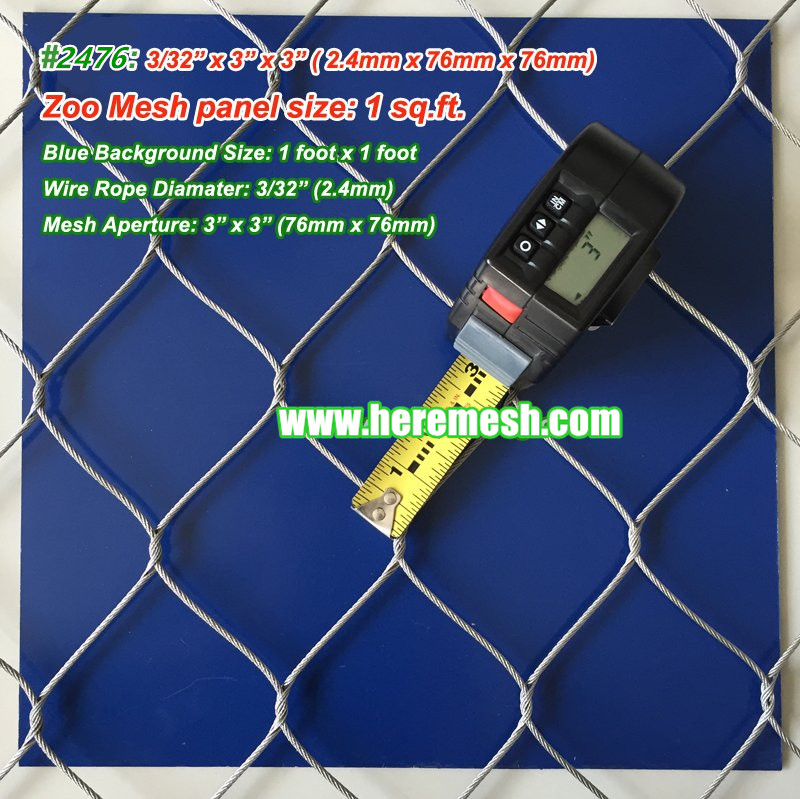

| #2476 | 2.4mm | 76 x 76 | 3/32" | 3" x 3" | 0.72 | 7×7 | 4.08 |

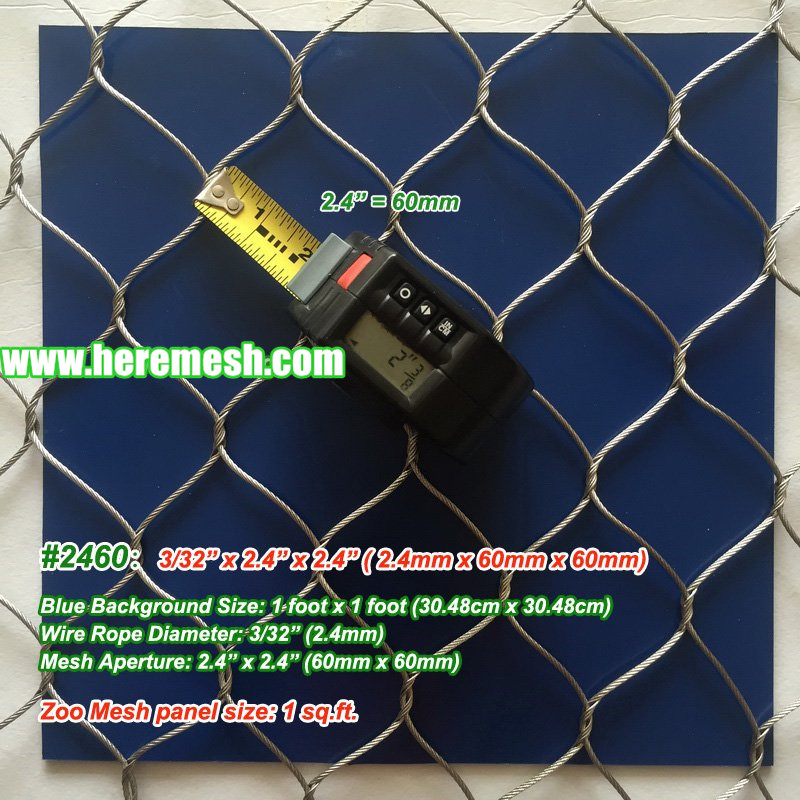

| #2460 | 2.4mm | 60 x 60 | 3/32" | 2.4" x 2.4" | 0.87 | 7×7 | 4.08 |
| #2451 | 2.4mm | 51 x 51 | 3/32" | 2" x 2" | 1.07 | 7×7 | 4.08 |
| #2076 | 2mm | 76 x 76 | 5/64" | 3" x 3" | 0.50 | 7×7 | 3.10 |
| #2060 | 2mm | 60 x 60 | 5/64" | 2.4" x 2.4" | 0.76 | 7×7 | 3.10 |
| #2051 | 2mm | 51 x 51 | 5/64" | 2" x 2" | 0.80 | 7×7 | 3.10 |
| #2038 | 2mm | 38 x 38 | 5/64" | 1.5" x 1.5" | 1.10 | 7×7 | 3.10 |
| #16102 | 1.6mm | 102 x 102 | 1/16" | 4" x 4" | 0.26 | 7×7 | 2.12 |
| #1676 | 1.6mm | 76 x 76 | 1/16" | 3" x 3" | 0.37 | 7×7 | 2.12 |
| #1660 | 1.6mm | 60 x 60 | 1/16" | 2.4" x 2.4" | 0.45 | 7×7 | 2.12 |
| #1651 | 1.6mm | 51 x 51 | 1/16" | 2" x 2" | 0.50 | 7×7 | 2.12 |
| #1638 | 1.6mm | 38 x 38 | 1/16" | 1.5" x 1.5" | 0.65 | 7×7 | 2.12 |
| #1630 | 1.6mm | 30 x 30 | 1/16" | 1.2" x 1.2" | 0.90 | 7×7 | 2.12 |
| #1625 | 1.6mm | 25 x 25 | 1/16" | 1" x 1" | 1.10 | 7×7 | 2.12 |
| #12102 | 1.2mm | 102 x 102 | 3/64" | 4" x 4" | 0.15 | 7×7 | 1.19 |
| #1276 | 1.2mm | 76 x 76 | 3/64" | 3" x 3" | 0.19 | 7×7 | 1.19 |
| #1251 | 1.2mm | 51 x 51 | 3/64" | 2" x 2" | 0.25 | 7×7 | 1.19 |
| #1238 | 1.2mm | 38 x 38 | 3/64" | 1.5" x 1.5" | 0.40 | 7×7 | 1.19 |
| #1230 | 1.2mm | 30 x 30 | 3/64" | 1.2" x 1.2" | 0.45 | 7×7 | 1.19 |
| #1225 | 1.2mm | 25 x 25 | 3/64" | 1" x 1" | 0.55 | 7×7 | 1.19 |
| #1220 | 1.2mm | 20 x 20 | 3/64" | 0.8" x 0.8" | 0.73 | 7×7 | 1.19 |
