Stainless Steel Cable Mesh Project Cases
Excellent project cases of zoo mesh come from the wealth of project experience we have accumulated since 1996. Stainless steel cable mesh have been able to show the perfect display to customers, to get customer satisfaction and praise.Thanks to our excellent quality management, raw material monitoring and finished product inspection, we are able to control every detail of the stainless steel cable mesh production process.
The following cases are derived from feedback from our customers, many of which are creatively designed to be shared with you in the hope of providing you with a reference. Let the excellent construction experience of stainless steel cable mesh More widely spread, so that more architects and designers can understand this excellent product.
Stainless steel cable mesh was invented by Liulin in 1996 as a creative product of wire mesh has the following advantages:
1、The stainless steel wire rope mesh has good flexibility and elasticity.
2、Light-weight, strong resistance to breaking, Withstand animal’s biting. Stainless steel cable mesh have lighter weight and greater resistance to breakage than other wire mesh products such as nylon mesh, welded mesh, and chain wire mesh. The stainless steel wire rope has a minimum breaking resistance that is much higher than that of the same diameter single wire.
3、 Anti-weathering, 30+ years of service life. Stainless steel itself does not rust. Thanks to the non-rusting properties of this alloy material, the stainless steel cable mesh is weather resistant and has more than 30 years of service life.
4、Adaptability, easy installation, flexibility, can be applied to a variety of shapes. Whether it is a variety of special shapes or even 3D Styling, stainless steel cable mesh can adapt to a variety of design styles, which fully develop the imagination of the designer.
5、Good ventilation, good light transmission. It is suitable for the walk-in aviary, animal enclosures, with supersize panels, so that the stainless steel wire rope mesh is more inconspicuous, integration into the surroundings. It will give the visitors the best viewing experience for not block the sight.
1、The stainless steel wire rope mesh has good flexibility and elasticity.
2、Light-weight, strong resistance to breaking, Withstand animal’s biting. Stainless steel cable mesh have lighter weight and greater resistance to breakage than other wire mesh products such as nylon mesh, welded mesh, and chain wire mesh. The stainless steel wire rope has a minimum breaking resistance that is much higher than that of the same diameter single wire.
3、 Anti-weathering, 30+ years of service life. Stainless steel itself does not rust. Thanks to the non-rusting properties of this alloy material, the stainless steel cable mesh is weather resistant and has more than 30 years of service life.
4、Adaptability, easy installation, flexibility, can be applied to a variety of shapes. Whether it is a variety of special shapes or even 3D Styling, stainless steel cable mesh can adapt to a variety of design styles, which fully develop the imagination of the designer.
5、Good ventilation, good light transmission. It is suitable for the walk-in aviary, animal enclosures, with supersize panels, so that the stainless steel wire rope mesh is more inconspicuous, integration into the surroundings. It will give the visitors the best viewing experience for not block the sight.
According to the purpose, it is divided into the following categories:
- Date
- 03/07/2019
Stainless steel wire rope mesh is hand woven with 304 or 316 steel cable. It can be used for the construction of large aviary mesh. It is suitable for aviary such as walk in aviary, bird netting fence, peacock enclosure fence, flamingo fence mesh, red-crowned cranes and ostriches fence nets.- Date
- 06/19/2019
Stainless steel wire rope mesh is a new type of mesh used in parrot aviary mesh. It is hand-woven with 304 or 316 stainless steel wire cable. It is widely used in macaw enclosure fences and various parrot varieties, such as: Macaw aviary wire, Toucan enclosure net, Budgerigar netting fence.- Date
- 03/08/2019
Stainless steel wire rope mesh is a new type of mesh used in parrot aviary mesh. It is hand-woven with 304 or 316 stainless steel wire cable. It is widely used in macaw enclosure fences and various parrot varieties, such as: Macaw aviary wire, Toucan enclosure net, Budgerigar netting fence.- Date
- 03/11/2019
Stainless steel wire rope mesh is hand woven with 304 or 316 steel cable. It can be used for the construction of large aviary mesh. It is suitable for aviary such as walk in aviary, bird netting fence, peacock enclosure fence, flamingo fence mesh, red-crowned cranes and ostriches fence nets.- Date
- 03/08/2019
Stainless steel wire rope mesh is a perfect product for monkey enclosure mesh. Stainless steel wire rope mesh is a new type of zoo-specific mesh. Because of various characteristics of the stainless steel wire rope mesh, the best choice as monkey enclosure mesh and large monkey exhibit mesh.- Date
- 03/08/2019
The stainless steel wire rope mesh is hand-woven with 304 or 316 steel cable, which is suitable for tiger fences mesh, tiger enclosure mesh and so on. Moreover, the safety of the stainless steel wire rope mesh is high, and it can also protect the safety of the tiger while ensuring the safety of the tourists.- Date
- 03/10/2019
Stainless steel wire rope mesh is a late-model material for animal fence net, fabricated from SS 304/316 cable, and it is the best choice for the deer fence net. The stainless steel cable mesh produced by Liulin has passed international and industrial safety certification and has high safety performance, flexibility and elasticity.- Date
- 03/11/2019
Stainless steel wire rope mesh is a creative product for zoo animals. It is hand-woven with 304 and 316 stainless steel wire cables. It is a very suitable for leopard enclosure fence, is widely used for many leopards, such as ocelots, cheetah, jaguar, clouded leopard, panther, snow leopard etc.- Date
- 03/17/2019
Stainless steel wire rope mesh produced by Liulin is a special large animal enclosure mesh. Hand-woven with 304/316 stainless steel wire cable, it can be widely used in zoos and wildlife parks and is suitable for predatory animals. As a lion enclosure mesh, stainless steel cable mesh materials are praised and favored by customers.
Introduction of stainless steel cable mesh
Stainless steel cable mesh is a flexible wire mesh with diamond-shaped mesh openings (other names: flexible metal netting, stainless steel wire rope mesh, hand-woven stainless steel wire rope mesh, cable ferrule mesh, cable woven mesh, Webnet, wire woven mesh).The mesh is made of multiple strands of stainless steel wire interlaced and knotted without additional accessories. Simple structure, durable, reliable quality, long service life.
How product specifications are named:
The name of this specification is defined by the wire cable diameter and the mesh aperture.For example:
#2451
Cable diameter: 2.4mm
Mesh aperture: 51mm x 51mm
The diameter of the wire rope is 2.4 mm, and the opening of the mesh is the distance from the rope to the rope when the mesh is opened at an angle of 90 degrees, that is, X shown in the figure is 51 mm.
| Customizable Options | |
| >Material Type: | Stainless steel 304/304L/316/316L |
| >Specifications: | Including wire rope diameter and mesh opening size |
| >Wire rope diameter: |
3/64", 1/16", 5/64", 3/32", 1/8", 5/32" 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm, 4.0mm |
| >Mesh opening size: |
0.6"×0.6", 0.8"×0.8", 1"×1", 1.2"×1.2", 1.5"×1.5", 2"×2", 2.4"×2.4", 3"×3", 3.6"×3.6", 4"×4", 5"×5", 6"×6". 15mm×15mm, 20mm×20mm, 25mm×25mm, 30mm×30mm, 38mm×38mm, 51mm×51mm, 60mm×60mm, 76mm×76mm, 90mm×90mm, 102mm×102mm, 127mm×127mm, 152mm×152mm. |
| >Color: | Natural color, Black color, Bronze color |
| >Mesh panel size: |
You can provide the dimensions of the mesh panel and we will produce it according to the size you provide. The large panel size is supported, depending on different specifications the largest single panel size can be reached 300m². We recommend that you provide the required size so that you don't need to cut and avoid waste during installation. |
Specification of stainless steel cable mesh
| Code | Wire Cable Diameter | Aperture(mm) | Wire Cable Diameter(inch) | Aperture(Inch) | Unit weight(Kg/sq.m.) | Wire Cable Structure | Min.Breaking Load(KN) |
|---|---|---|---|---|---|---|---|
| #32152 | 3.2mm | 152 x 152 | 1/8" | 6" x 6" | 0.61 | 7×19 | 7.32 |
| #32127 | 3.2mm | 127 x 127 | 1/8" | 5" x 5" | 0.70 | 7×19 | 7.32 |
| #32120 | 3.2mm | 120 x 120 | 1/8" | 4.7" x 4.7" | 0.76 | 7×19 | 7.32 |
| #32102 | 3.2mm | 102 x 102 | 1/8" | 4" x 4" | 0.96 | 7×19 | 7.32 |
| #3290 | 3.2mm | 90 x 90 | 1/8" | 3.6" x 3.6" | 1.10 | 7×19 | 7.32 |
| #3276 | 3.2mm | 76 x 76 | 1/8" | 3" x 3" | 1.40 | 7×19 | 7.32 |
| #3260 | 3.2mm | 60 x 60 | 1/8" | 2.4" x 2.4" | 1.65 | 7×19 | 7.32 |
| #3251 | 3.2mm | 51 x 51 | 1/8" | 2" x 2" | 2.10 | 7×19 | 7.32 |
| #24152 | 2.4mm | 152 x 152 | 3/32" | 6" x 6" | 0.35 | 7×7 | 4.08 |
| #24127 | 2.4mm | 127 x 127 | 3/32" | 5" x 5" | 0.42 | 7×7 | 4.08 |
| #24102 | 2.4mm | 102 x 102 | 3/32" | 4" x 4" | 0.51 | 7×7 | 4.08 |
| #2490 | 2.4mm | 90 x 90 | 3/32" | 3.6" x 3.6" | 0.60 | 7×7 | 4.08 |
| #2476 | 2.4mm | 76 x 76 | 3/32" | 3" x 3" | 0.72 | 7×7 | 4.08 |
| #2460 | 2.4mm | 60 x 60 | 3/32" | 2.4" x 2.4" | 0.87 | 7×7 | 4.08 |
| #2451 | 2.4mm | 51 x 51 | 3/32" | 2" x 2" | 1.07 | 7×7 | 4.08 |
| #2076 | 2mm | 76 x 76 | 5/64" | 3" x 3" | 0.50 | 7×7 | 3.10 |
| #2060 | 2mm | 60 x 60 | 5/64" | 2.4" x 2.4" | 0.76 | 7×7 | 3.10 |
| #2051 | 2mm | 51 x 51 | 5/64" | 2" x 2" | 0.80 | 7×7 | 3.10 |
| #2038 | 2mm | 38 x 38 | 5/64" | 1.5" x 1.5" | 1.10 | 7×7 | 3.10 |
| #16102 | 1.6mm | 102 x 102 | 1/16" | 4" x 4" | 0.26 | 7×7 | 2.12 |
| #1676 | 1.6mm | 76 x 76 | 1/16" | 3" x 3" | 0.37 | 7×7 | 2.12 |
| #1660 | 1.6mm | 60 x 60 | 1/16" | 2.4" x 2.4" | 0.45 | 7×7 | 2.12 |
| #1651 | 1.6mm | 51 x 51 | 1/16" | 2" x 2" | 0.50 | 7×7 | 2.12 |
| #1638 | 1.6mm | 38 x 38 | 1/16" | 1.5" x 1.5" | 0.65 | 7×7 | 2.12 |
| #1630 | 1.6mm | 30 x 30 | 1/16" | 1.2" x 1.2" | 0.90 | 7×7 | 2.12 |
| #1625 | 1.6mm | 25 x 25 | 1/16" | 1" x 1" | 1.10 | 7×7 | 2.12 |
| #12102 | 1.2mm | 102 x 102 | 3/64" | 4" x 4" | 0.15 | 7×7 | 1.19 |
| #1276 | 1.2mm | 76 x 76 | 3/64" | 3" x 3" | 0.19 | 7×7 | 1.19 |
| #1251 | 1.2mm | 51 x 51 | 3/64" | 2" x 2" | 0.25 | 7×7 | 1.19 |
| #1238 | 1.2mm | 38 x 38 | 3/64" | 1.5" x 1.5" | 0.40 | 7×7 | 1.19 |
| #1230 | 1.2mm | 30 x 30 | 3/64" | 1.2" x 1.2" | 0.45 | 7×7 | 1.19 |
| #1225 | 1.2mm | 25 x 25 | 3/64" | 1" x 1" | 0.55 | 7×7 | 1.19 |
| #1220 | 1.2mm | 20 x 20 | 3/64" | 0.8" x 0.8" | 0.73 | 7×7 | 1.19 |
Installation of stainless steel cable mesh
The following is the finished product after installation for your reference.The steel wire rope will link and expand the frame with the mesh or between the mesh and the mesh.
This method is the most flexible and practical.
Note that use a slightly larger wire cable diameter as the connecting cable.

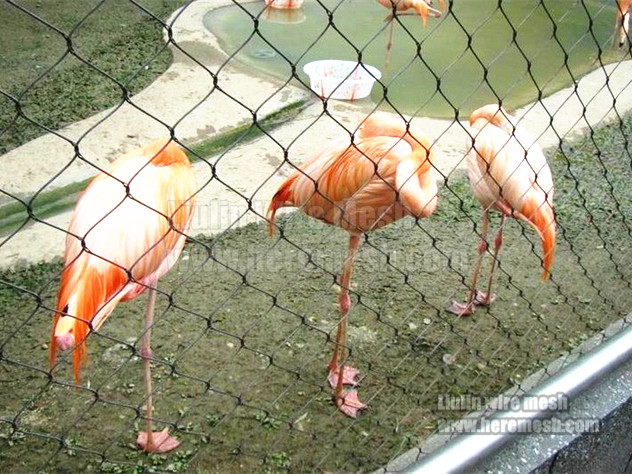

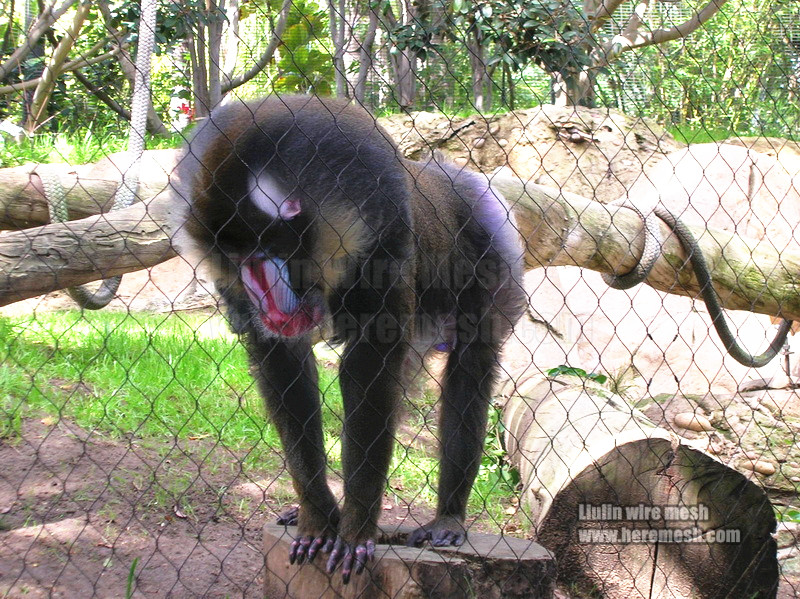

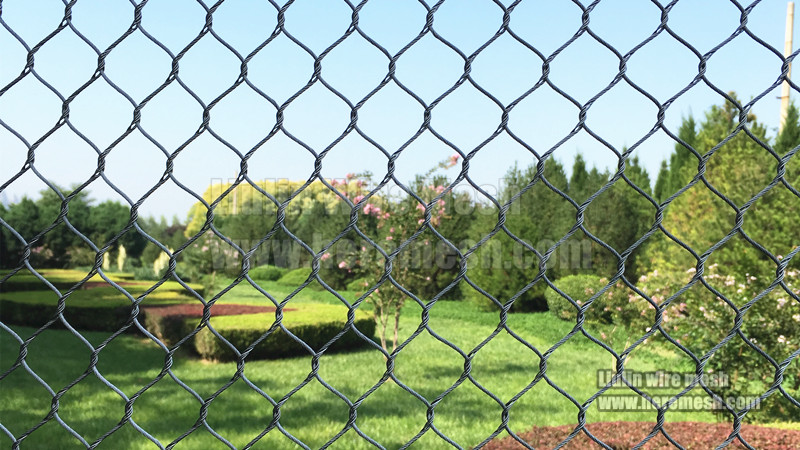

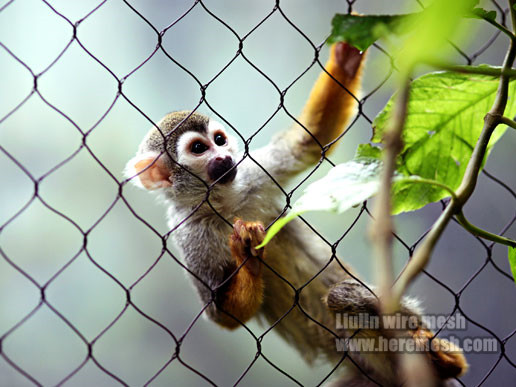

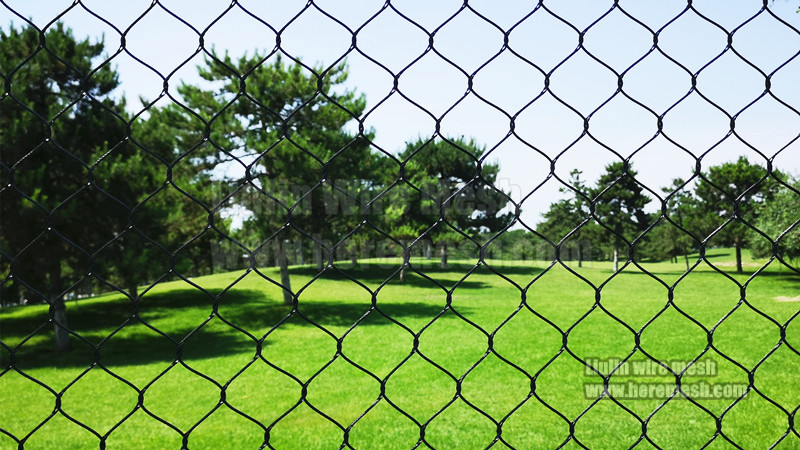

Black color stainless steel cable mesh
We have prepared a variety of accessories of the same color for your use getting a better effect. Once the black stainless steelcable mesh was developed, it was favored by customers everywhere.The black stainless steel wire rope mesh is hand-woven from 304/316 steel wire rope, and after a special surface treatment process, it forms a black oxide coating, which gives customers more choices.
Black stainless steel cable mesh has a more beautiful appearance and can be compatible with all natural color projects.
The black appearance can effectively reduce the reflection and is easy to be ignored by tourists.
Black stainless steel cable mesh are more widely used, for example
As a building material in zoo animal fence, zoo enclosure mesh, aviary netting panels.
Applicable to these fields as playground fence, stadium fence, green plant wall, indoor exhibition hall decoration, etc
The black appearance can effectively reduce the reflection and is easy to be ignored by tourists.
Black stainless steel cable mesh are more widely used, for example
As a building material in zoo animal fence, zoo enclosure mesh, aviary netting panels.
Applicable to these fields as playground fence, stadium fence, green plant wall, indoor exhibition hall decoration, etc
Shipment of stainless steel cable mesh
Depending on the size of the order, natural color products are usually shipped for 7-15 days, and dyed products need to be increased by about 7 days.There are 3 modes of transportation available for delivery:
1, Express. Our partner company has FedEx, TNT Express, DHL Express. Shipping time is generally 3-7 days.
2, Air transport. Our nearest airport is Beijing Airport, the transportation time is generally 3-7 days, generally, require customers to go to the airport to clear customs.
3, Shipping. Our nearest port is Tianjin Port, the transportation time is usually 7-30 days, requiring customers to arrive at the port for customs clearance.
| Shipment Options | |
| ≦20kg | Within 100kg, it is recommended to choose express delivery. TNT/ups |
| 20kg-300kg | It is recommended to choose express. TNT/FedEx/DHL/ups |
| 300kg-1000kg | More than 300 kg recommended express or air freight. FedEx/DHL Air Freight |
| 1000kg | More than 1000 kg recommended air freight or sea shipping. Air Freight/Sea Shipping |
