In modern urban ecosystems, parks serve as vital spaces for public recreation and relaxation. However, under the theme of openness and sharing, security and management have always been the core issues in park design. Park fencing, as a key facility for defining space, directing foot traffic, and ensuring safety, directly impacts the park’s overall aesthetic, user experience, and long-term maintenance costs through its form and material selection. Among numerous fencing materials, stainless steel ferrule mesh is increasingly becoming the preferred solution for modern park protection systems due to its outstanding performance, elegant aesthetics, and cost-effective practicality. It constructs a harmonious barrier that seamlessly integrates sturdiness, transparency, and visual appeal.

What is stainless steel ferrule mesh?

Stainless steel ferrule mesh is not a traditional woven mesh. It is a metal mesh made by firmly joining high-strength stainless steel wires at the intersection points through a “ferrule”. To deeply understand its superiority, we first need to deconstruct its core composition and manufacturing process.

Core Materials

The non-corrosion property of stainless steel is attributed to the fact that its internal chromium content is no less than 10.5%. When chromium comes into contact with oxygen, it forms a very dense protective film on the surface of the steel. This protective film effectively prevents the iron atoms inside from reacting with the external moisture and oxygen, thus achieving the purpose of rust prevention and corrosion resistance. The ferrule mesh used for park fencing usually adopt the following two types of stainless steel:

304 Stainless Steel: As a general-purpose stainless steel, it has good corrosion resistance, heat resistance, and low-temperature strength. For most urban park environments, except for those near heavily industrial areas or coastal areas with high salt content, 304 stainless steel can fully meet its weather resistance requirements and is an extremely cost-effective choice.

316 Stainless Steel: On the basis of 304, this type contains additional molybdenum. The addition of this element greatly enhances the corrosion resistance of stainless steel, and its resistance to pitting and crevice corrosion is even more outstanding. For coastal parks or northern city parks that require spreading snow-melting agents in winter, 316 stainless steel is a more durable and reliable choice.

Core process: ferrule connection

The manufacturing process of the ferrule mesh is what sets it apart from welded nets and woven nets. The general process flow is as follows:

Unrolling and Straightening: The rolled high-strength stainless steel wire is spread out through an unrolling frame and passes through multiple sets of straightening rollers to ensure that each steel wire is in a straight state before entering the weaving area.

Ferrule Formation: This is the most crucial step. Pressure is used to tightly compress the steel wires together. This pressure causes the contact surfaces of the steel wires to interlock and interlock tightly, forming a solid “ferrule” node.

Shaping and Cutting: The formed mesh sheet undergoes final shaping treatment to ensure stable dimensions. Then, using the pre-determined dimensions, the steel wire cutter performs precise cutting to form regular rectangles or specific-shaped mesh plates.

Surface Treatment (Optional): Although stainless steel itself already has a beautiful metallic luster, to meet different aesthetic requirements, oxidation coloring (black) treatment can also be carried out.

This unique ferrule technique not only ensures the overall integrity and node strength of the mesh surface, but also avoids the drawbacks caused by welding, while maintaining the original corrosion resistance of the material.

Why choose stainless steel ferrule mesh as park fencing?

When we apply the stainless steel ferrule mesh to the park fencing, its value is reflected in multiple aspects such as safety, aesthetics, economy and environmental protection.

Durability and Anti-Climbing Resistance

The primary function of the park fence is to provide protection and isolation. The nodes of the stainless steel ferrule mesh do not merely touch but have a deep mechanical interlocking. Its tensile strength and shear strength are much higher than those of ordinary woven nets. The entire mesh surface forms a uniformly stressed entity. Even if a large impact occurs locally, the force can quickly be dispersed throughout the entire mesh surface, effectively preventing deformation and damage. Its smooth surface and dense grid greatly increase the difficulty of climbing, thereby achieving an excellent safety barrier effect.

Transparency and Visual Integration

Traditional physical fences or impenetrable iron fences, although capable of providing a barrier effect, often result in a depressing and fragmented visual experience. Traditional fences undermine the open and natural atmosphere that a park should have. The stainless steel ferrule mesh solves this problem perfectly. With its slender wire diameter and regular grid, it maximizes the transparency of the view. The scenery within the park can be freely exposed without any obstruction, presenting a perfect spatial effect. This enhances the overall environmental quality of the surrounding area.

Weather Resistance and Longevity

Park facilities are constantly exposed to wind, sun, and rain, presenting a severe test for the durability of the materials. The inherent corrosion resistance of stainless steel park fenceing enables them to handle dampness, acid rain, and ultraviolet rays without difficulty. Compared to ordinary steel fences that require regular painting for rust prevention, the stainless steel ferrule mesh are an almost one-time solution. Their service life can last for several decades, and no frequent maintenance is needed during this period, significantly reducing the overall usage cost throughout the life cycle. This enduring quality ensures the long-term safety and beauty of the park.

Impact Resistance and Safety

For the fences around children’s activity areas and sports fields, their safety is not only reflected in preventing climbing, but also in their response when subjected to impact. The stainless steel park fencing has certain flexibility. When an accidental collision occurs, the mesh surface can undergo a slight deformation, providing a buffering effect and reducing the harm to the human body. Compared to hard concrete or thick iron railings, it is more safe.

Eternal aesthetic value and modernity

The stainless steel material itself exudes a modern and minimalist artistic atmosphere. Its silvery luster blends with the green plants in the park, and under different light and weather conditions, it can produce rich changes in light and shadow. Whether applied in modern-style urban parks or natural ecological rural parks, it can well integrate into the environment and enhance the overall quality and style of the park. Through different surface treatment processes, it can also present diverse colors to meet specific themes or landscape design requirements.

Green environmental attributes

Stainless steel is a 100% recyclable material. When it reaches the end of its long service life, it can be fully recycled and used to manufacture new stainless steel products. Stainless steel materials do not cause solid waste pollution to the environment and are in line with the concept of sustainable development. Compared to ironwork that frequently requires anti-corrosion coatings, its manufacturing process also reduces pollutant emissions.

Convenient Installation and Maintenance

The ferrule mesh is usually supplied in rolled or sheet form, with a relatively light weight. It is very convenient for transportation and on-site installation. It can be quickly connected to the pre-embedded columns through the matching stainless steel ferrule and bolts, resulting in high construction efficiency and minimal impact on the normal operation of the park. In terms of maintenance, its surface is smooth, and daily cleaning and maintenance are extremely simple. Occasionally, a high-pressure water gun rinse is sufficient to restore it to a shiny condition.

The full life-cycle cost of the economy

In terms of initial investment, high-quality stainless steel park fencing may be more expensive than ordinary wire mesh. However, when considering the entire life-cycle, their extremely low maintenance characteristics have saved significant costs and labor expenses for rust removal, painting, repair, and even replacement. Therefore, it is a more sensible and economical long-term investment.

Application scenario: Various applications of stainless steel park fencing

The various applications of stainless steel park fencing in this multi-functional park space. The stainless steel ferrule mesh can play multiple roles and adapt to different functional areas.

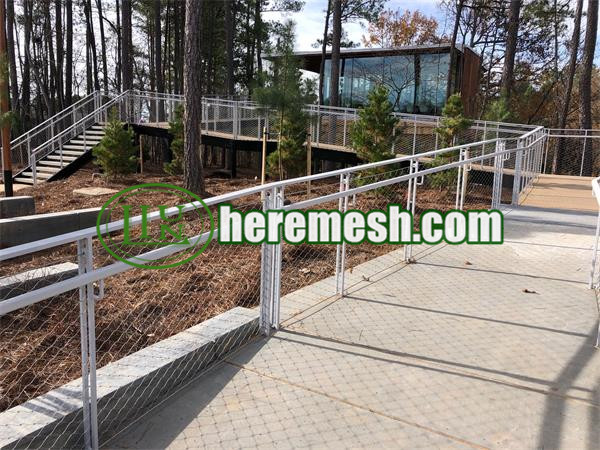

Park boundary isolation: It can clearly define the management area and prevent vehicles and people from entering randomly. At the same time, it maintains visual continuity and does not disrupt the continuity of the urban landscape.

Protection of children’s activity area: This is one of the areas with the highest safety requirements. By using a grid with smaller aperture and thicker wire diameter, the ferrule mesh can effectively protect children within the safe area. Its smooth surface can also prevent children from getting injured during play.

Railing around water bodies: Set around lakes and other water areas, it can effectively prevent people from accidentally falling into the water and is a crucial safety facility. Its moisture-resistant and corrosion-resistant properties are fully utilized here.

Perimeter mesh for animal enclosures: In parks with small animals, the sturdy and durable characteristics of the ferrule mesh make it an ideal choice for birdhouses, small animal exhibition areas, etc. The fencing can ensure the safety of the animals while not affecting the tourists’ viewing.

Stadium fencing: Used to enclose basketball courts, tennis courts, football fields, etc., it can effectively intercept flying balls and ensure the safety of people outside the field, while defining the sports space.

Design and Installation: Scientifically Establishing a Safety Barrier

To fully utilize the performance of the stainless steel ferrule mesh, scientific design and standardized installation are of vital importance.

Design considerations:

Height selection: Depending on the type of protected object, the height of the fence should vary. The height of common boundary isolation is usually between 1.5 meters and 2 meters; fall prevention fences should be no less than 1.1 meters.

Mesh size and wire diameter: The mesh diameter and wire diameter are the key parameters determining the strength and anti-climbing ability of the fence. A balance must be struck between permeability and safety. For example, the mesh diameter in the children’s area should be less than 70mm (to prevent the head from passing through), and the wire diameter is recommended to be above 3.2mm.

Posts and foundation: The strength of the mesh requires sturdy posts and a foundation to support it. The posts are usually made of the same material as stainless steel square tubes or round tubes to ensure the overall structure is stable.

Installation Process:

Positioning and Laying Out: According to the design drawings, precisely mark the positions of the columns.

Foundation Construction: Excavate the foundation pit, pour the concrete foundation, and pre-burry the columns.

Column Installation: Adjust the verticality and horizontal height of the columns, and secure them firmly.

Mesh Installation: Unfold ferrule mesh, use the dedicated stainless steel connection ferrules and bolts to firmly connect the mesh to the columns. Ensure that all connection points are tight and the mesh surface is taut and flat.

Inspection and Acceptance: After installation, conduct a comprehensive inspection of the structural stability, the firmness of the joints, and the overall appearance.

Conclusion

When choosing a suitable park fencing, one must strike the optimal balance between safety and freedom, isolation and integration, functionality and aesthetics. The stainless steel ferrule mesh, with its durable material, exquisite craftsmanship, transparent and lightweight appearance, and long-lasting life, successfully embodies this balance. It is not merely a physical barrier but also a manifestation of design. Choosing stainless steel park fencing not only beautifies the urban environment but also provides a reliable guarantee for the park.
